CanSat V1 Mission

UAV Deployment • Atmospheric Telemetry • Experimental Payload

Mission Overview

The Tamil Space Tech CanSat V1 prototype was deployed using a UAV to collect atmospheric telemetry during a controlled drop test.

The payload used a BME280 environmental sensor connected to an ESP32 microcontroller with onboard microSD data logging.

Mission Results

Satellite vs CanSat Atmospheric Comparison

Atmospheric measurements collected during the CanSat V1 UAV drop test were compared with NASA MERRA-2 satellite atmospheric data for the same location (10.3836° N, 77.9539° E). The comparison validates the environmental sensing payload and demonstrates reliable atmospheric telemetry acquisition.

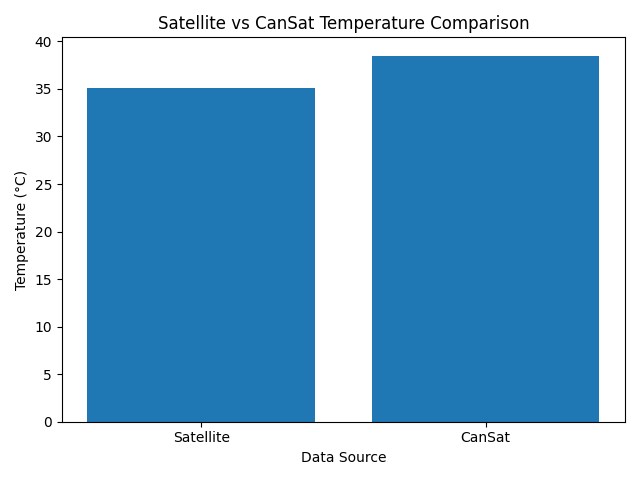

Temperature Comparison

Temperature difference due to payload heating and direct sunlight exposure.

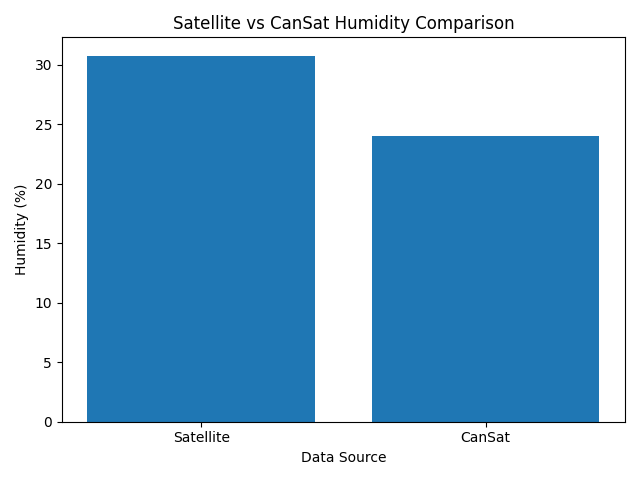

Humidity Comparison

Local humidity variation measured by onboard BME280 sensor.

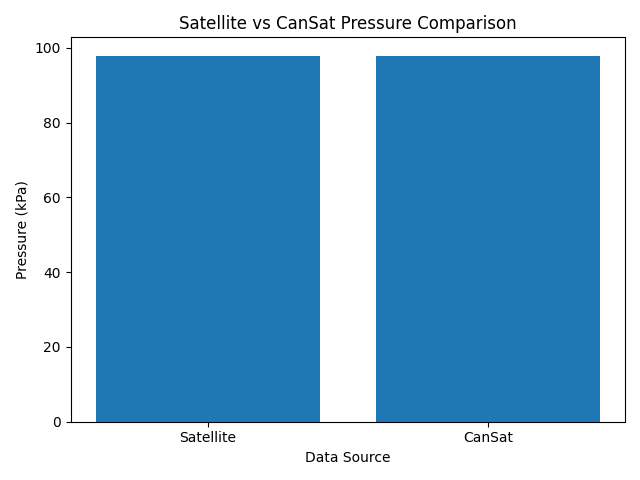

Pressure Comparison

Pressure values show strong agreement with satellite observations.

Mission Timeline

1

UAV Release

2

Free Fall

3

Parachute Deploy

4

Landing

5

Data Analysis

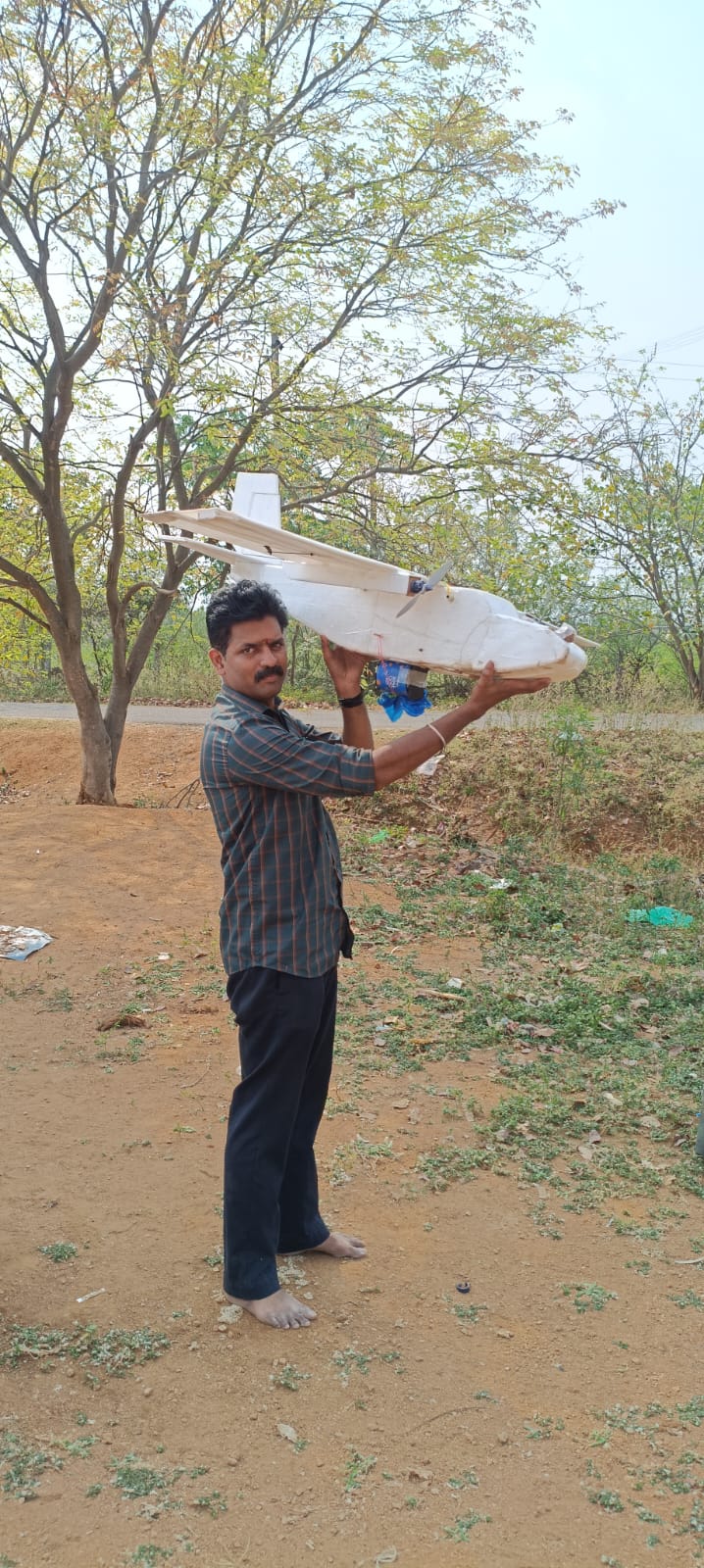

UAV used for CanSat deployment

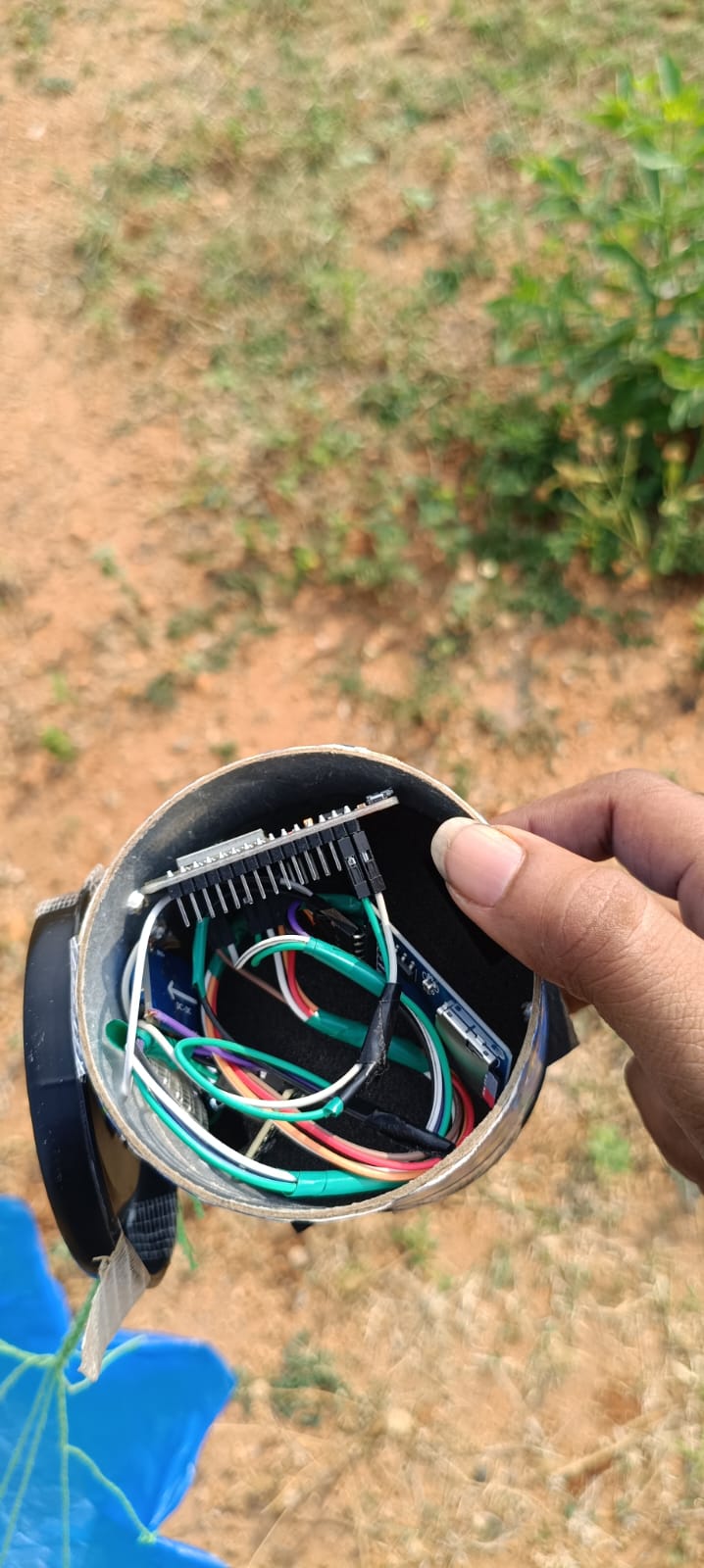

Internal electronics of CanSat payload

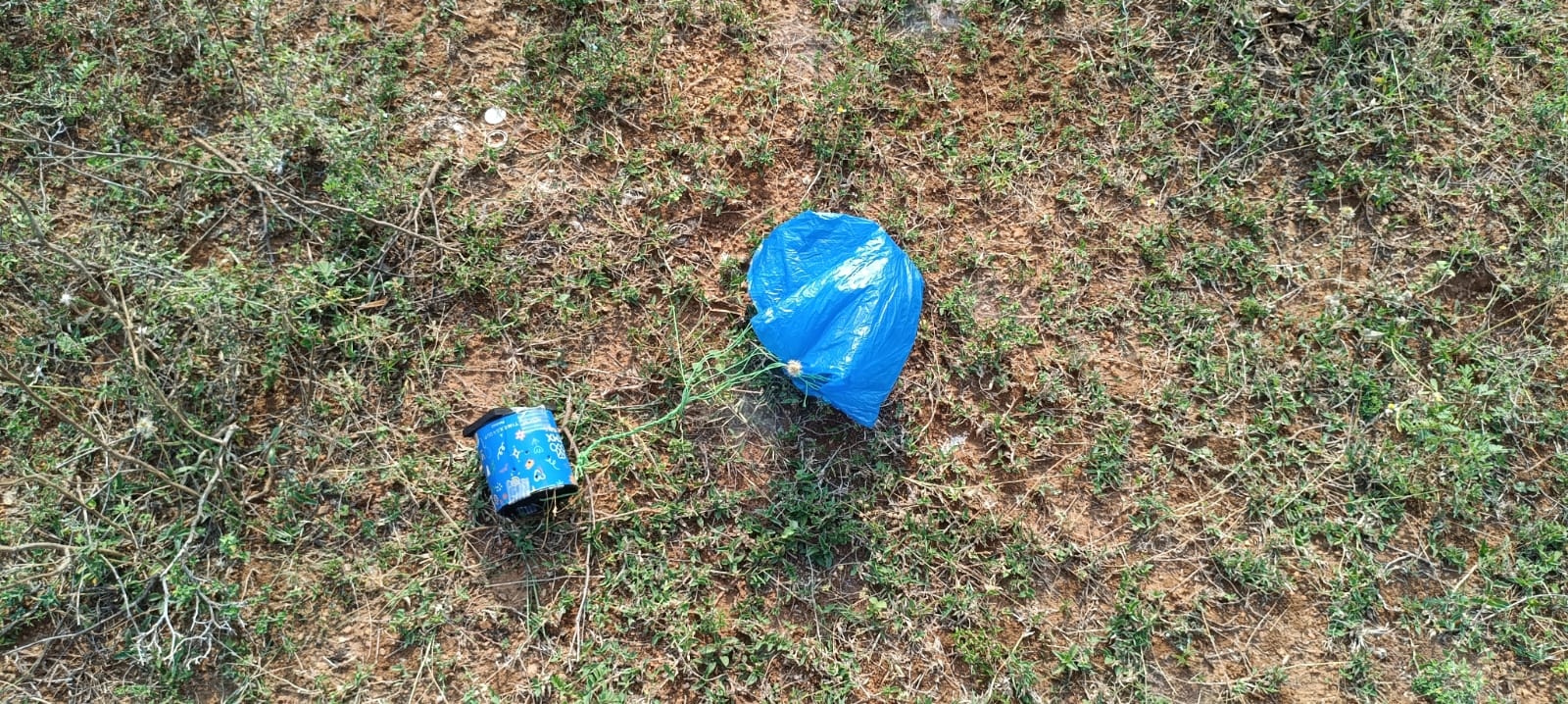

Parachute landing after UAV drop

Real UAV deployment test of the CanSat V1 prototype

Telemetry data recorded during the UAV drop test

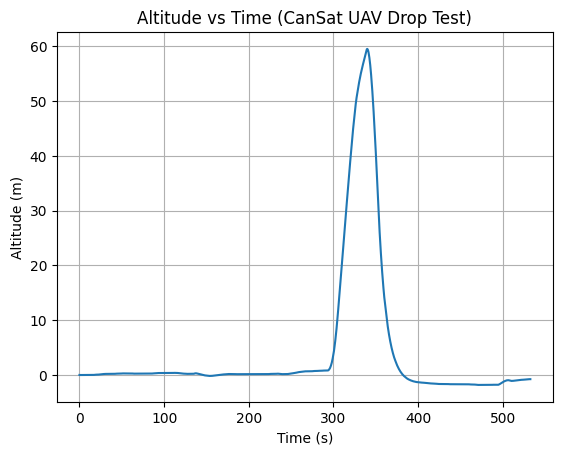

Altitude vs Time

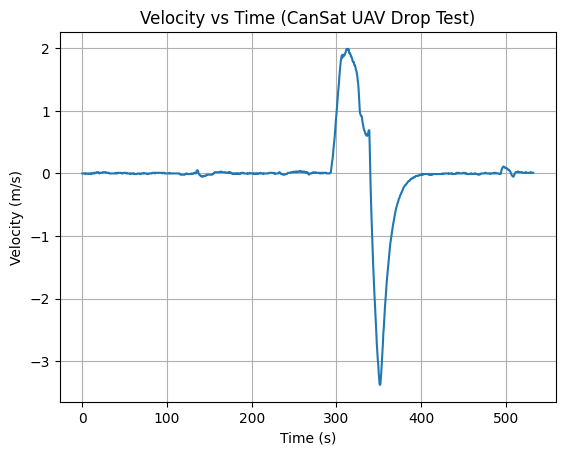

Velocity vs Time

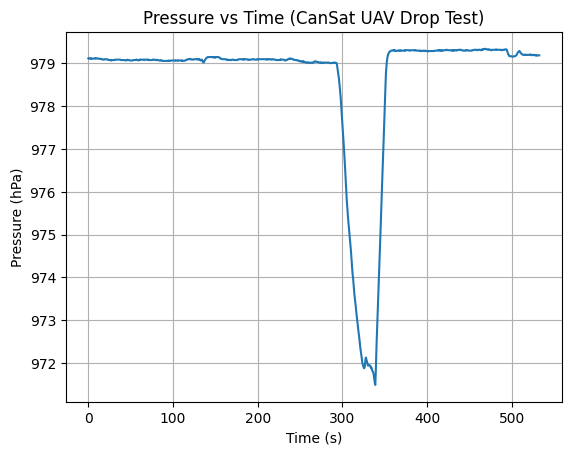

Pressure vs Time

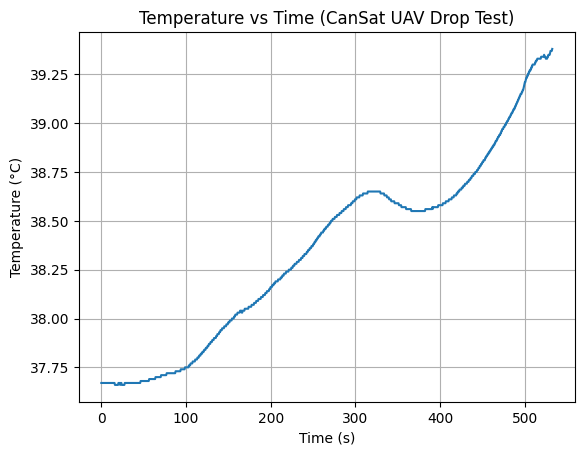

Temperature vs Time

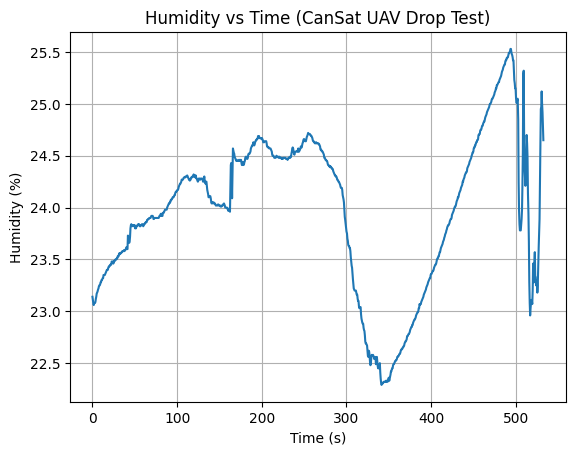

Humidity vs Time
